A boat transom is one of the most important structural parts of many boats. Although it may look like a simple stern panel, it often supports the outboard engine, swim platform, boarding ladder, trim tabs, transducers, and other stern-mounted equipment.
Because the transom carries weight, vibration, thrust, and water pressure, even small signs of damage should be taken seriously. Cracks, soft spots, water stains, loose fittings, or engine movement can all point to hidden boat transom damage.
In this guide, we explain what is a boat transom, why it matters, how to inspect it, common problems, repair options, likely costs, and simple boat transom maintenance steps that can help prevent expensive repairs.
Some links on this page are affiliate links. This means The Yacht Maintenance Hub may earn a commission if you click through and make a purchase, at no extra cost to you. We only recommend products, tools and marine suppliers that we believe are useful for yacht owners, captains, crew and marine professionals.
This article is all about Boat Transoms!
Most transom problems start when water enters through poorly sealed bolts, screws, drain plugs, or fittings, so good maintenance is mainly about keeping the transom dry, sealed, and structurally sound. If the transom feels soft, flexes under engine load, or shows signs of rot, it should be checked by a marine professional before the boat is used heavily.

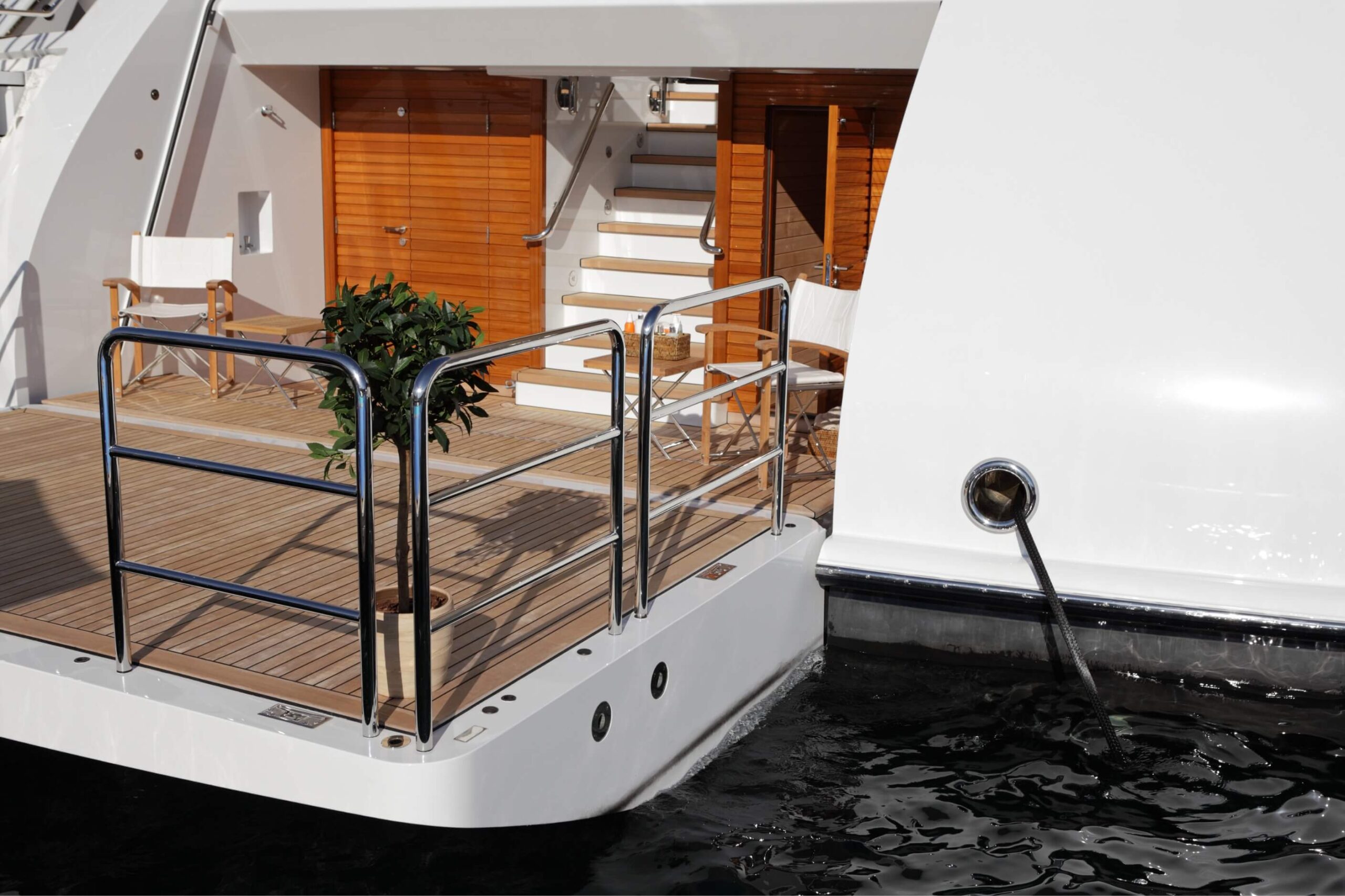

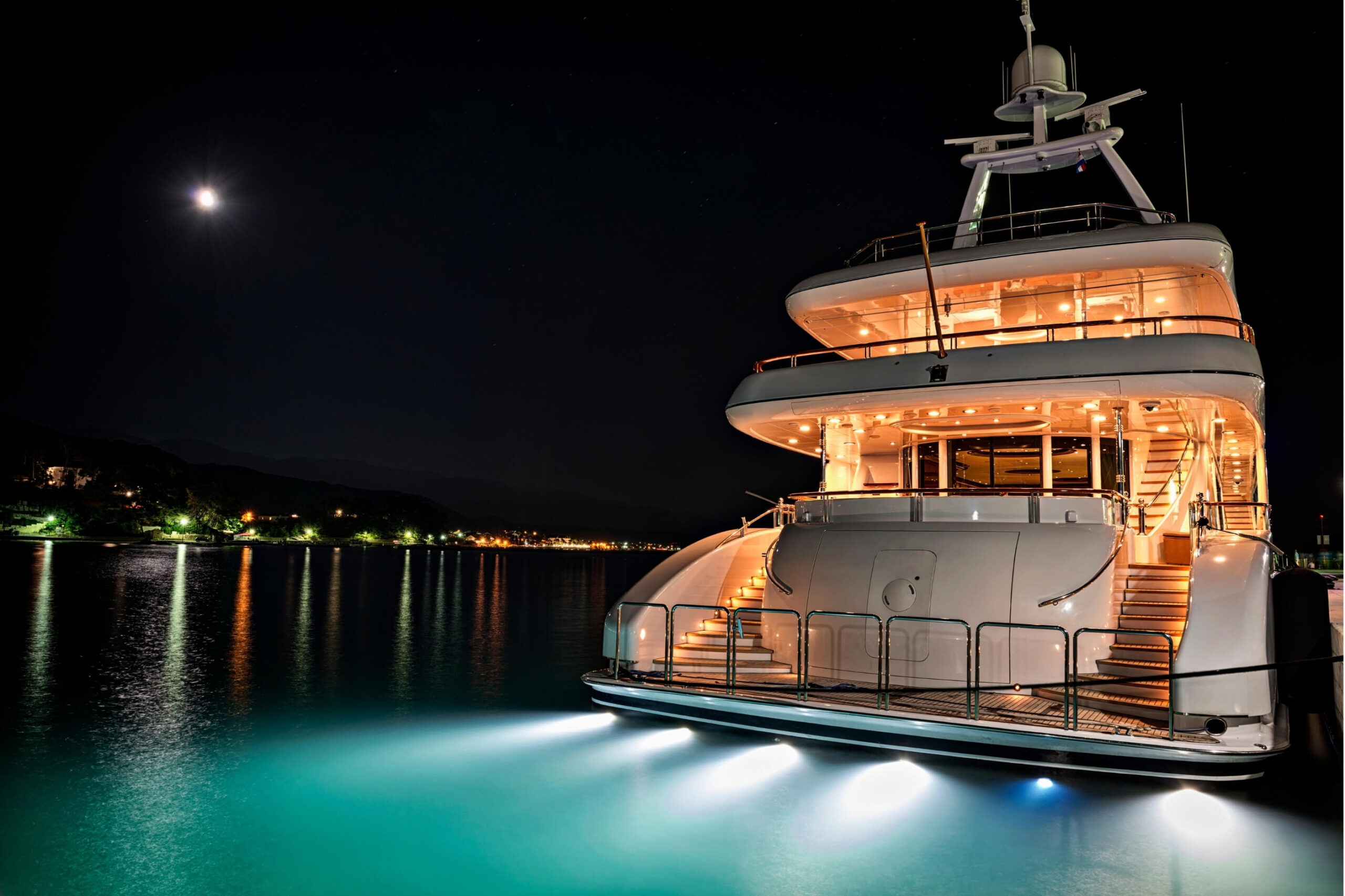

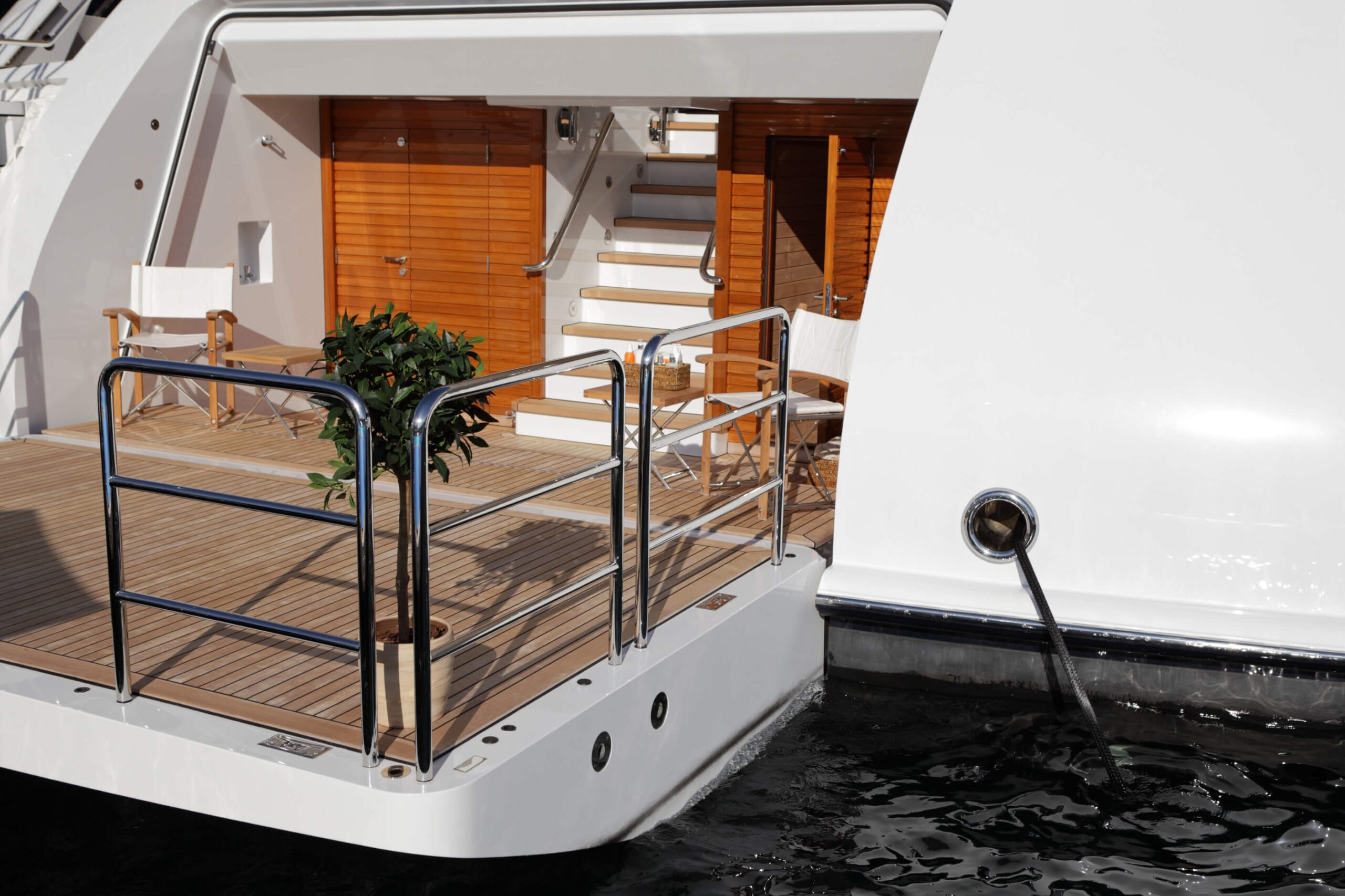

The boat transom is the rear section of the hull. On many outboard boats, it is the area where the engine is bolted or clamped. Therefore, it must be strong enough to handle engine weight, thrust, vibration, and trim forces.
A transom may also support:
On fiberglass boats, the transom is often made from fiberglass skins with a plywood or composite core inside. On wooden boats, the transom may be part of the visible timber structure. Either way, the transom must remain dry, bonded, and structurally sound.
The transom structure matters because it transfers loads from the engine and stern equipment into the hull. As a result, a weak transom can affect safety, handling, engine alignment, and long-term hull strength.
This is especially important on an outboard boat transom. When the engine is running, the transom absorbs thrust, vibration, and leverage. Then, when the boat hits waves, the load increases. Therefore, a damaged or soft transom can quickly become a serious problem.
A strong transom helps:
Transom rot is common on older boats with plywood-cored transoms. It usually starts when water enters through screw holes, bolts, drain plugs, trim tabs, or poorly sealed fittings.
Over time, the timber core absorbs moisture. Then, it softens, rots, and loses strength. As a result, the transom may no longer support the engine or stern hardware properly.
Common signs of a rotted transom include:
Transom cracks can be minor or serious. Fine gelcoat cracks may only be cosmetic. However, cracks around engine bolts, splashwell corners, trim tabs, or towing eyes need closer inspection.
Cracks are more concerning when they are growing, leaking, wide, or linked to soft areas. Therefore, do not simply fill cracks without checking what caused them.
A soft transom on boat usually means the internal core is wet, rotten, crushed, or delaminated. You may notice movement when the engine is lifted or trimmed. You may also hear a dull sound during a tap test.
This is not just a cosmetic issue. Instead, it often means the transom has lost strength.
Ttransom water damage often starts around fittings. Every screw, bolt, and hole through the transom is a possible leak point if it is not sealed correctly.
Common leak areas include:
Because of this, resealing fittings is one of the most important preventative jobs.
A basic transom inspection should be part of every haul-out, seasonal service, and pre-purchase check.
First, clean the transom so you can see cracks, staining, and sealant failure. Then, inspect around all fittings, corners, bolts, and drain areas.
Look for:
Next, lightly tap around the transom with a plastic mallet or screwdriver handle. A solid area usually sounds sharp and consistent. However, a wet, rotten, or delaminated area may sound dull or hollow.
This test is useful, but it is not perfect. Therefore, if you are unsure, ask a marine surveyor or fiberglass specialist.
On an outboard boat, watch the engine and transom while the engine is gently trimmed or moved. There should not be obvious flexing, cracking, or movement between the engine bracket and transom.
If the transom moves, stop using the boat heavily until it has been inspected.
A moisture meter can help identify wet areas inside the transom. However, readings can be affected by laminate thickness, metal fittings, antifoul, and recent washing. Therefore, it is best used by someone experienced.
| Task | Suggested Interval | Why It Matters |
|---|---|---|
| Visual check | Monthly in season | Finds cracks and leaks early |
| Inspect stern fittings | Every 3 months | Prevents water ingress |
| Check outboard bolts | Every 3 months | Reduces movement and stress |
| Tap test suspicious areas | Annually or at haul-out | Helps find hidden damage |
| Reseal ageing fittings | As needed | Protects the core |
| Professional inspection | If damage appears | Confirms structural safety |
The right transom repair depends on the material, damage level, access, and engine load.
Small gelcoat cracks or chips may only need grinding, filling, fairing, and gelcoat repair. However, this should only be done after you confirm the core is dry and solid.
If the sealant has failed but the transom is still sound, remove the fitting, clean the area, dry it properly, seal exposed core with epoxy, and re-bed the fitting with marine sealant.
This is often a simple job, but it can prevent major damage later.
Fiberglass transom repair may involve removing damaged laminate, replacing wet core material, bonding in new plywood or composite core, laminating fiberglass, fairing, and refinishing.
Because the transom is structural, larger fiberglass repairs should usually be handled by a professional.
Wooden boat transom repair may involve replacing damaged timber, resealing fasteners, refastening planks, repairing seams, and recoating the surface. Since wooden structures need the correct timber and fastening methods, a shipwright is often the safest choice.
A full boat transom replacement may be needed when the core is rotten, crushed, badly delaminated, or no longer strong enough to support the engine.
This usually involves removing the engine and stern hardware, cutting access, removing rotten core, installing new core material, laminating new fiberglass, drilling and sealing new holes, then refinishing the area.
Boat transom repair cost varies depending on boat size, access, labour rates, finish quality, and whether the engine must be removed.
| Repair Type | Typical Cost Guide | Notes |
|---|---|---|
| Resealing fittings | Low DIY cost to $300+ | Best early prevention job |
| Small gelcoat repair | $150–$600+ | Depends on finish quality |
| Local fiberglass repair | $500–$2,000+ | Higher if structural |
| Partial core repair | $1,500–$5,000+ | Requires proper laminate work |
| Full replacement | $3,000–$10,000+ | Can rise on larger boats |
In short, early maintenance is far cheaper than full boat transom replacement cost.
DIY can be suitable for minor resealing, small cosmetic repairs, and filling unused holes correctly. However, the core must be dry and sound before you start.
Call a marine professional if:
A transom carries serious loads. Therefore, structural repairs are not the place for guesswork.
Useful inspection and maintenance items include:
For bigger repairs, you may also need grinders, sanders, marine plywood or composite board, laminating resin, fairing compound, gelcoat, or paint.
Small cracks can get worse. Therefore, photograph them, mark the ends, and check whether they grow.
Do not trap moisture inside the transom. If water has entered the core, dry and investigate the area before sealing it.
Household sealants are not suitable for most marine fittings. Use proper marine sealant or epoxy systems.
Swim platforms, davits, brackets, and larger engines all add stress. Therefore, check the builder’s guidance before upgrading.
Fairing compound and gelcoat can hide a problem, but they will not restore a rotten or delaminated core.
A boat transom is the stern section of the hull. It often supports the outboard engine, swim platform, boarding ladder, trim tabs, and other stern fittings.
Signs include cracks, soft spots, water stains, hollow sounds, loose fittings, or engine movement. If several signs appear together, arrange a professional inspection.
Yes, boat transom rot can often be repaired. However, minor damage may only need local repair, while major rot may require full boat transom replacement.
Minor repairs may cost a few hundred dollars, while structural repairs can cost several thousand. Full boat transom replacement cost can reach $3,000–$10,000+ depending on size and access.
Small resealing jobs can be DIY-friendly. However, structural boat transom repair, core replacement, and engine mounting repairs should usually be done by a marine professional.
The boat transom is a critical structural area, especially on outboard-powered boats. It supports loads, protects the hull, and helps keep the engine and stern fittings secure.
Therefore, regular inspection and preventative maintenance are essential. Check for cracks, soft spots, water ingress, loose fittings, and engine movement. Most importantly, reseal fittings before water reaches the core.
If you are unsure whether the damage is cosmetic or structural, get a marine surveyor, shipwright, or fiberglass repair specialist involved before the problem becomes more expensive.
